5.0 Coyote Ford Crate Engine w/ 6R80 6 Speed Auto Transmission

400 HP / 5.0 Coyote Ford Crate Engine w/ 6 Speed Auto Transmission Combo

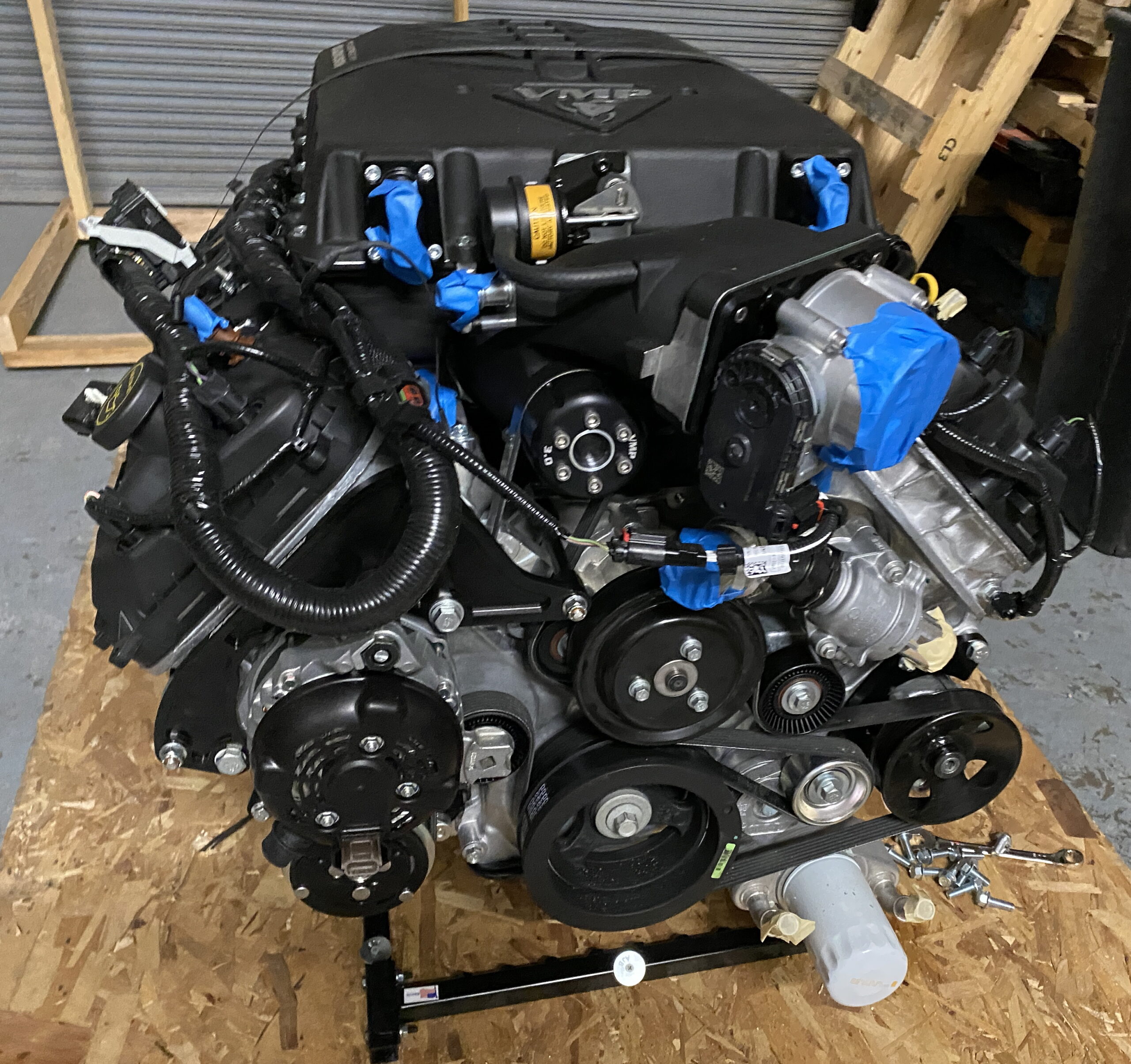

This is the Complete GEN 2 Ford Coyote Engine and Automatic Transmission Package. Ideal for a Street Rod or Hot Rod Setup. Plug n Play.  400 HP / 5.0 Coyote Ford Crate Engine w/ 6 Speed Auto Transmission Combo

• 5.0L (302 cubic inches)
• 10.5:1 compression ratio (nominal)
• Hyperuetectic  pistons with Graphal® low friction coating Piston-cooling jets, optimized oil drainback, and windage control improve high-rpm performance
• Manley® H-beam connecting rods with ARP® 2000 bolts
• Clevite connecting rod bearings
• Lightweight aluminum cylinder block,   features cross-bolted main bearing caps and thick main bearing bulkheads for bottom-end strength
• Large rear sump Retrofit 8 quart oil pan with 10qt capacity features optimized oil drainback and windage tray to control oil and improve high-rpm performance
• Tuned composite Mustang GT intake manifold with production drive by wire 80 mm throttle body
• Four-valve-per-cylinder aluminum heads with roller-finger followers reduce friction with Boss Valve Springs
• Ford Racing engine cover kit
• The Ford Racing “Coyote” Engine Control Pack includes a PCM with Ford Racing calibration, Electronic Throttle Control accelerator pedal, a unique downsized power distribution module, Air box with inlet tube, MAF sensor with bolts, and EGO sensors.
• Front Timing Cover
• Includes colder heat range zero (0) spark plugs,
• Includes Ford Racing oil filter
• Automatic Flexplate
• Vehicle harness and PCM  included, designed for street rod/project car installation.
• Remote Mount Filter Adapter  available for applications requiring oil filter relocation
• Engine mount bosses and bellhousing mount pattern common to 4.6L modular engines.
• Serpentine Pulleys with A/C and P/S available as options above.
• Complete  6R80W Automatic Transmission. with Controller. Includes Torque Converter, Spacer Plate & Diptube .
• High Torque Starter

• Year Range	Make	Model
  1966-1973	Ford	Mustang
  1979-1993	Ford	Mustang
  1979-1993	Factory Five	MKIV
  1979-1993	Factory Five	Hot Rod
  1966-1977	Ford	Bronco
  1963-1977	Ford	F100
  1963-1977	Ford
